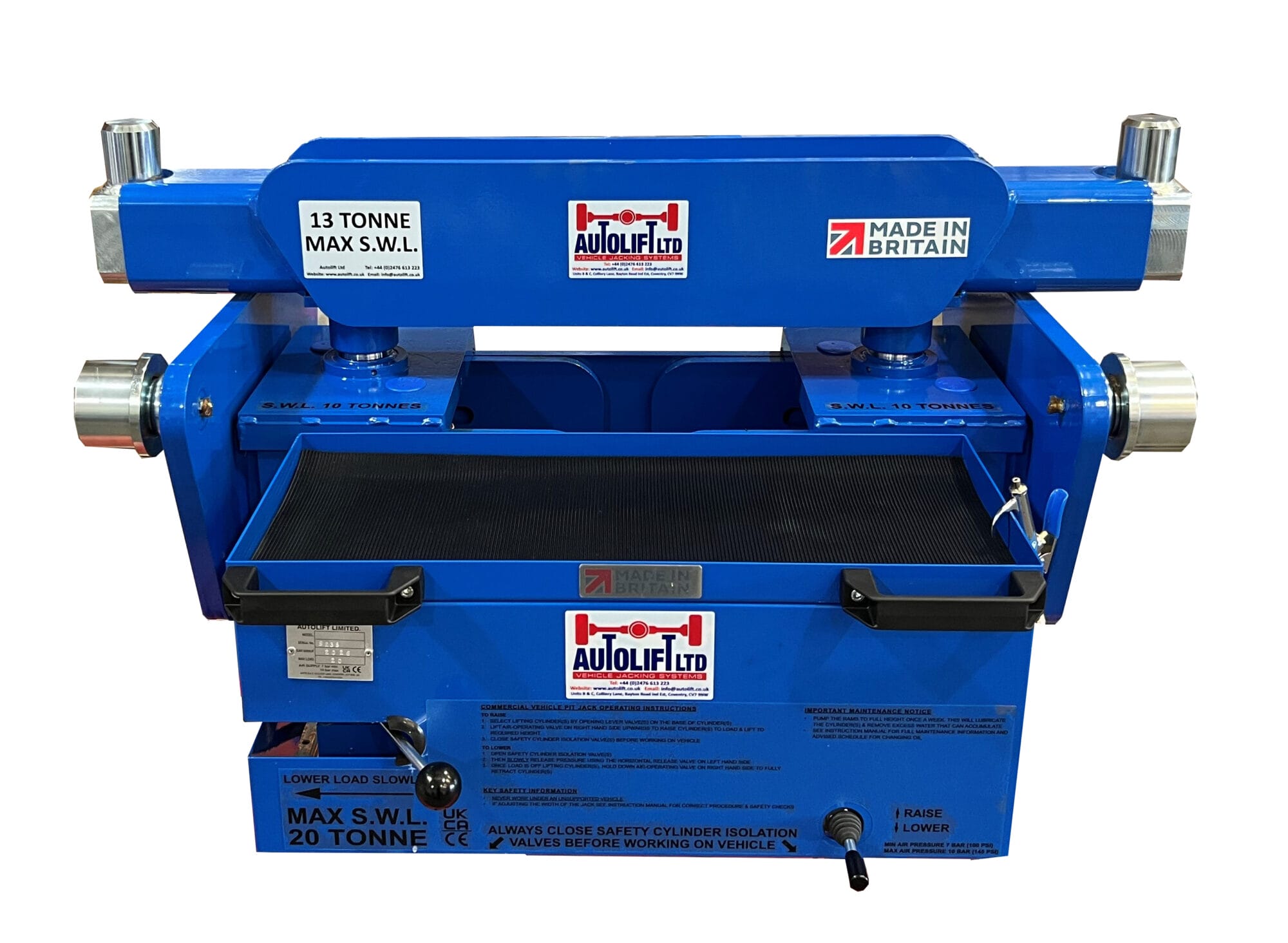

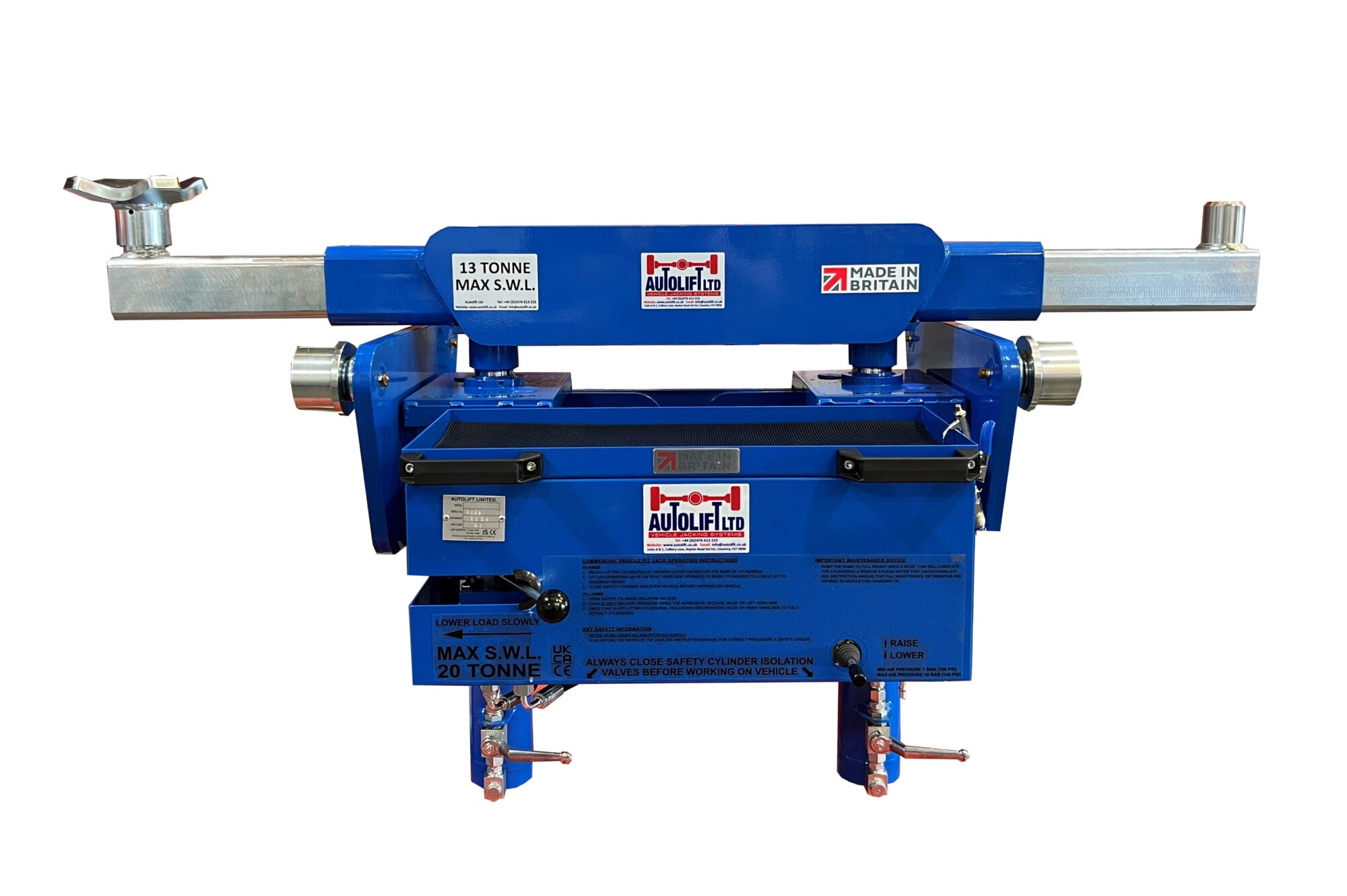

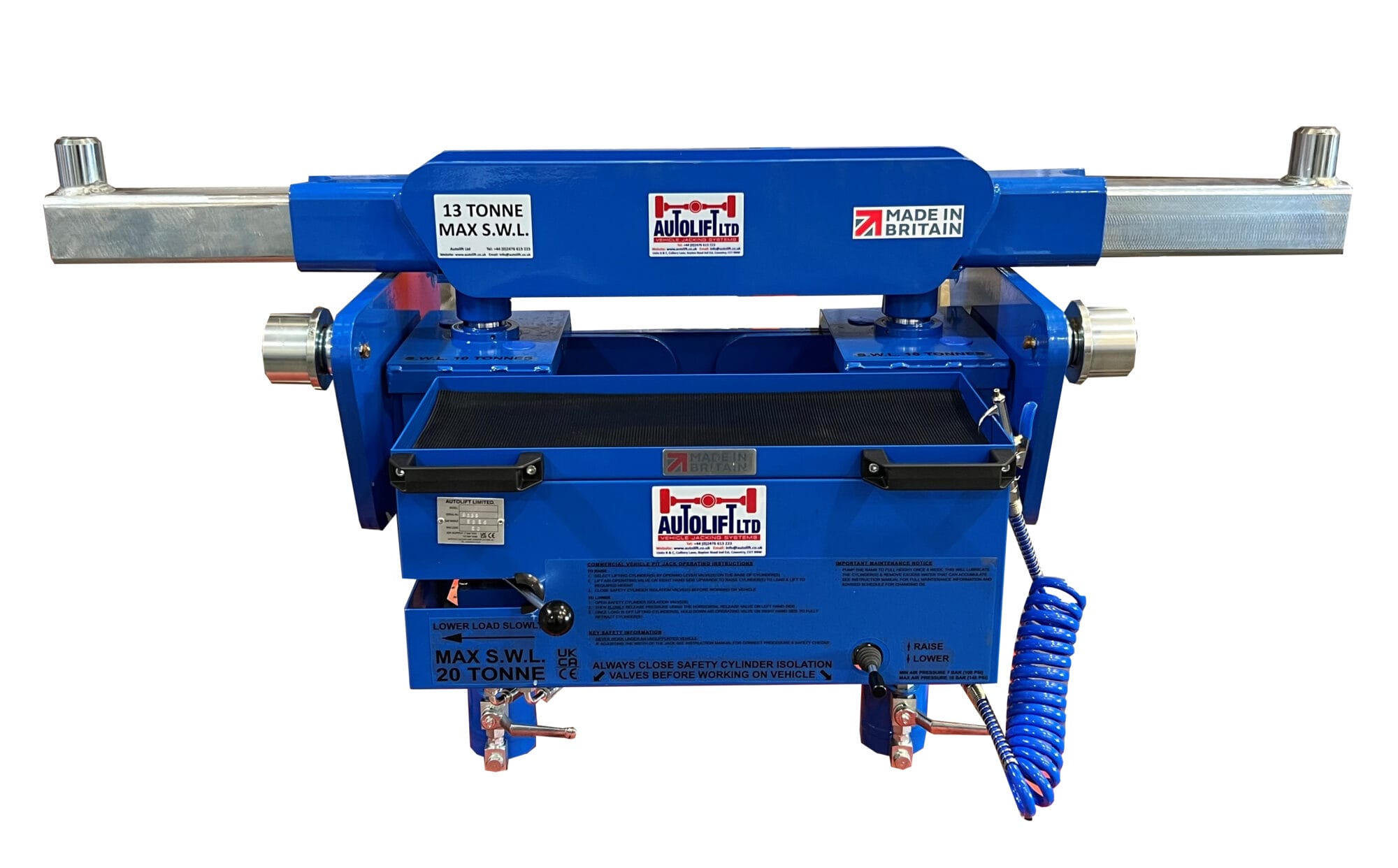

13 Tonne Telescopic Spreader Beam

13 TONNE TELESCOPIC SPREADER BEAM FOR TWIN RAM

SPECIFICATION

This spreader beam is designed to accommodate vehicles with independent front suspensions – particularly buses and coaches. This Spreader Beam also enables you to reach jacking points beyond the width of your pit.

Having a spreader beam is a legal requirement for ATF & MOT dedicated test lanes.

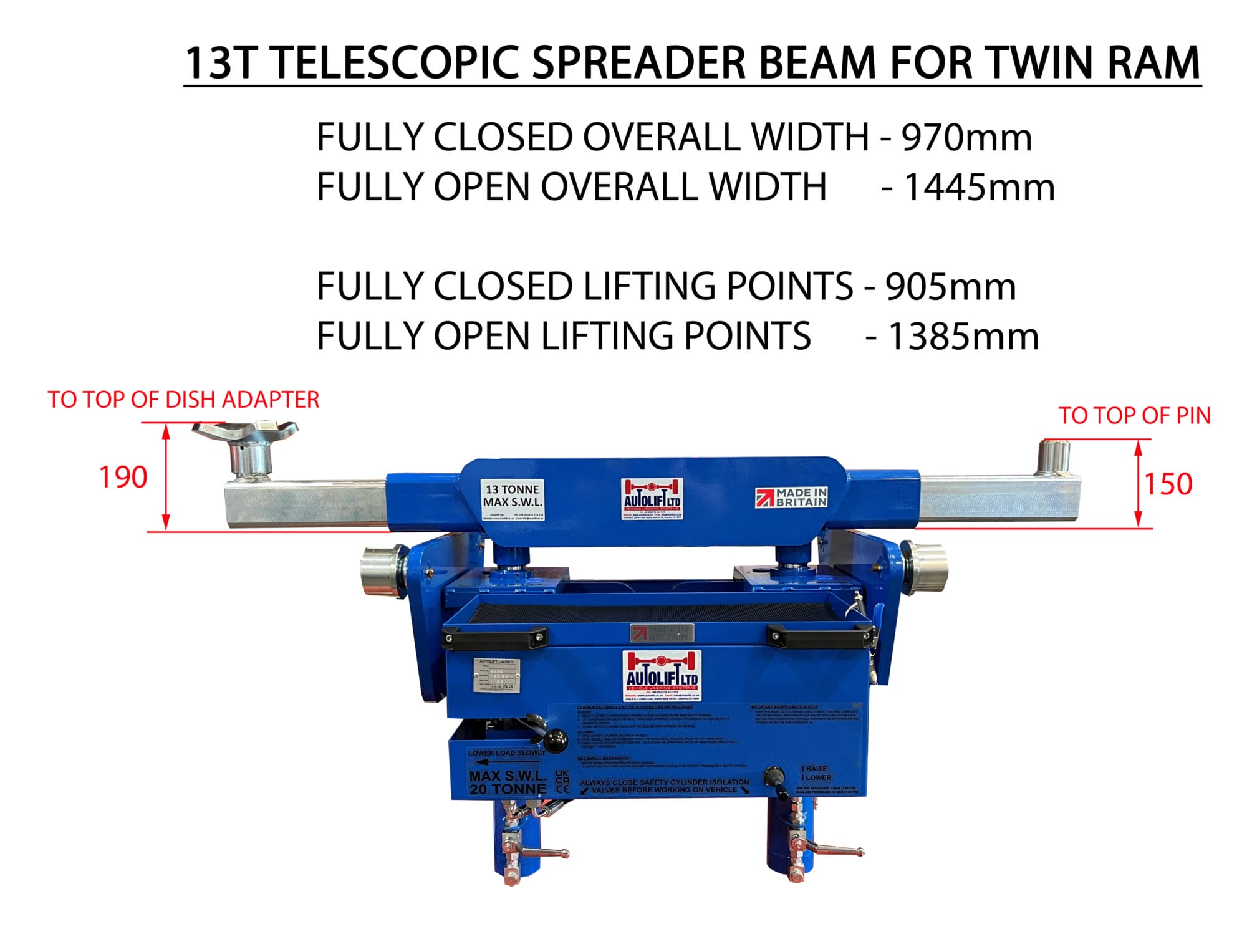

Fully closed the lifting points are 920mm apart and fully extended they are 1400mm apart.

Pit must be a minimum of 800mm wide for rams to be able to spread far enough apart to fit the Spreader Beam on.

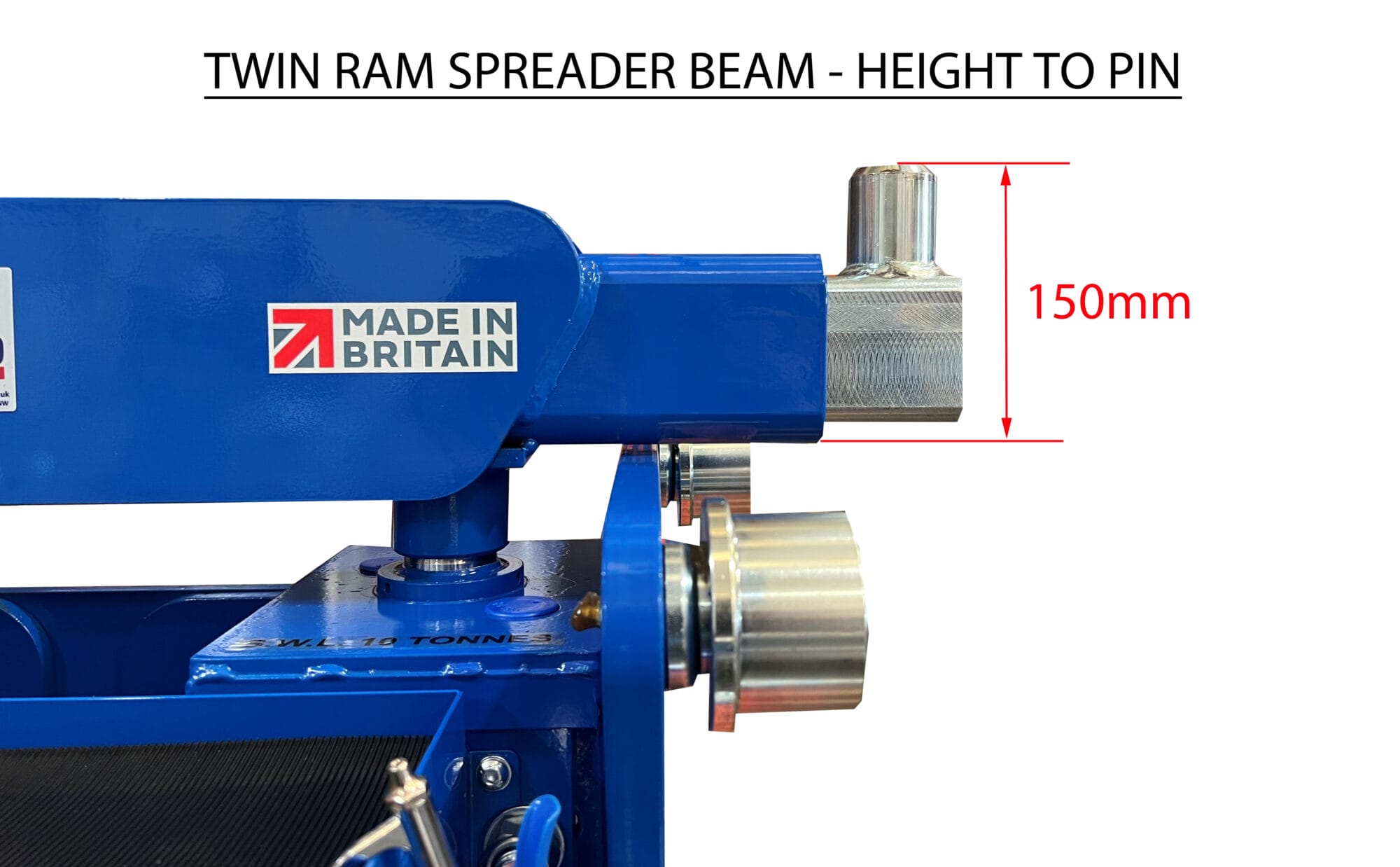

290mm from bottom of pit channel/angle to top of spreader beam spears.

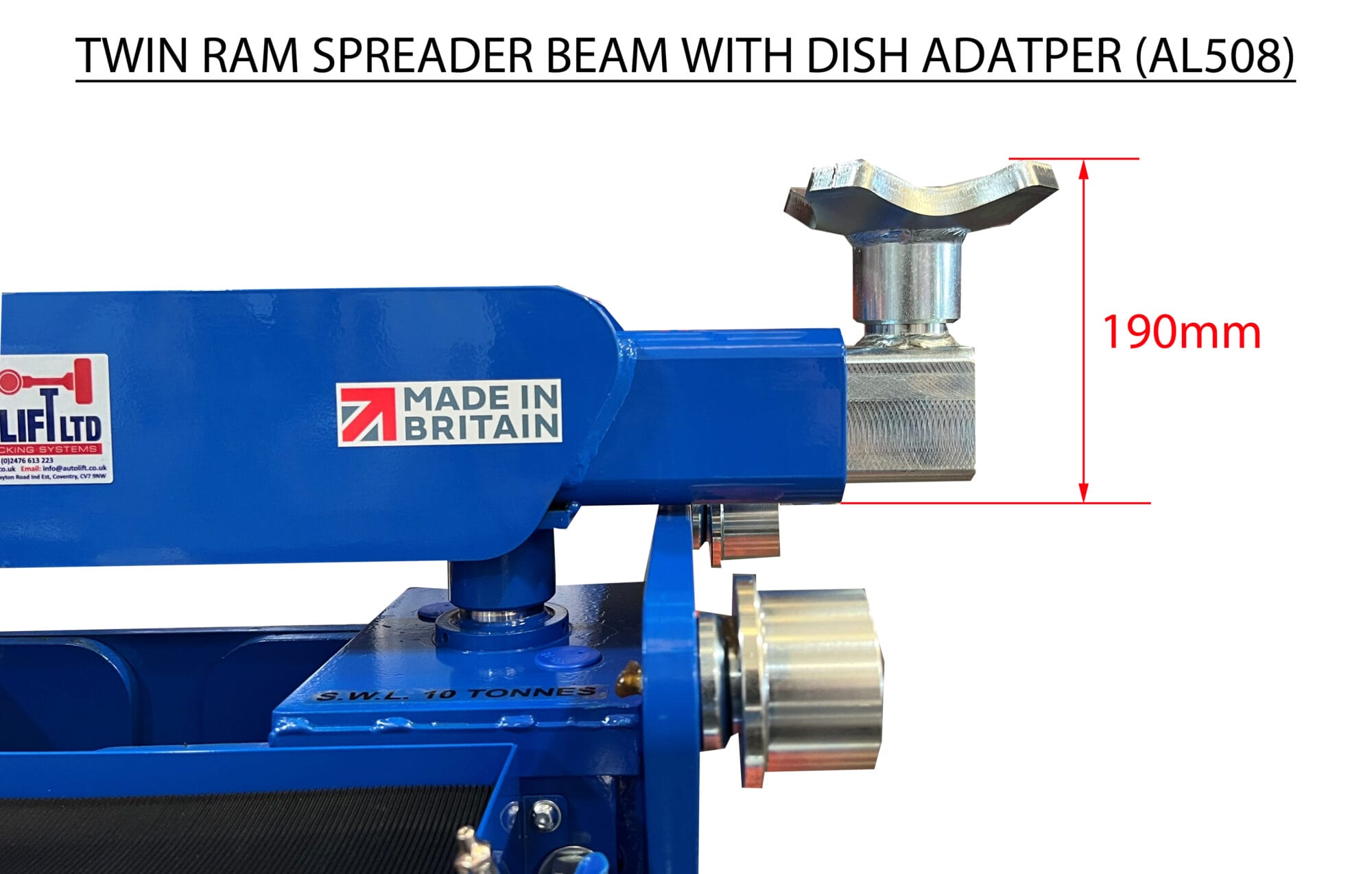

340mm from bottom of pit channel/angle to top of Dish Head Adapter.

Finance Options available - Get in touch for more details

Dealer rates are available - please contact us for more information

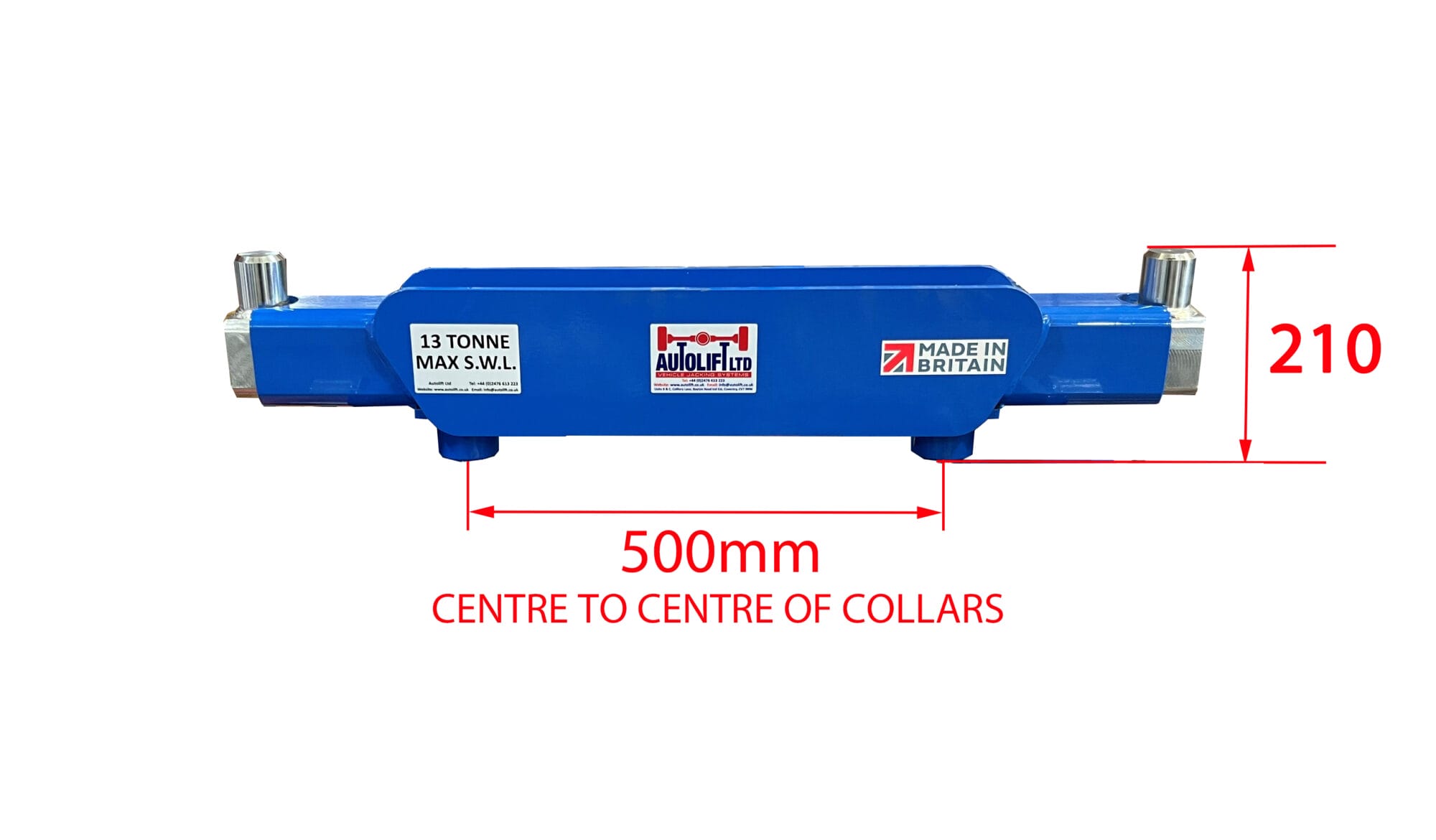

Dimensions	Fully closed the lifting points are 920mm apart and fully extended they are 1400mm apart. Pit must be a minimum of 800mm wide for rams to be able to spread far enough apart to fit the Spreader Beam on. 290mm from bottom of pit channel/angle to top of spreader beam spears. 340mm from bottom of pit channel/angle to top of Dish Head Adapter.
Warranty	Designed and manufactured in accordance with Machinery Directive 98/37/EC and engineering standard: BS EN 1494:2001 (Materials handling equipment) complies with EC requirements and is covered by a 5 year warranty. Each unit is fully tested, marked with a serial number and supplied with a test certificate
Price	£899

To enquire about the 13 Tonne Telescopic Spreader Beam, please enter your details in the form below.
